3003 Aluminium Coil Strip Description
3003 Aluminum Coil Stock Suppliers / 3003 Coil Coating in China
3003 Aluminum Coil Stock Suppliers / 3003 Coil Coating in China
Alloy:AA3003
Temper:HO,H12,H14,H16,H18,H22,H24,H26,H28
Thickness:0.2mm-6.0mm
Width:80mm-2300mm
Length:100-11000mm
Standard production:ASTM-B-209M,BS EN 485-2,BS EN 573-3,GB/T3880-2008
MOQ:5 tons per size
Mother coil:DC or CC
Weight:about 0.3-2.5mts per pallet
Surface:Mill finishing,mirror finishing,checkered
Package:Export standard package with wooden pallet
Delivery time:within 30days
Origin:Zhengzhou,China
Certificate: Mill Test Certificate,Certificate of origin:Form A,Form E,CO
Regular size:1.0*1219*2438,2.0*1220*2440,3.0*1200*2400,3.0*1200*3600,2.5*1250*2500,
3.0*1500*3000,2.0*1500*3600
Chemical Properties - 3003 Aluminium Coil Strip
Specification - 3003 Aluminium Coil Strip
Mechanical Properties - 3003 Aluminium Coil Strip
Chemical Properties - 3003 Aluminium Coil Strip
| Alloy Designation | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Ga | V | Remarks | Others |
Aluminium min |
||
| Numerical | Chemical Sympols | Each | Total | |||||||||||||
|
EN AW -3003 |
EN AW- AI Mn1Cu |
0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | - | - | 0.10 | - | - | - | - | 0.05 | 0.15 | Remainder |
Specification - 3003 Aluminium Coil Strip
| Product Name | 3003 Aluminum Coil Strip |
| Thickness(mm) | 0.0065-150mm |
| Width(mm) | 25mm-2200mm |

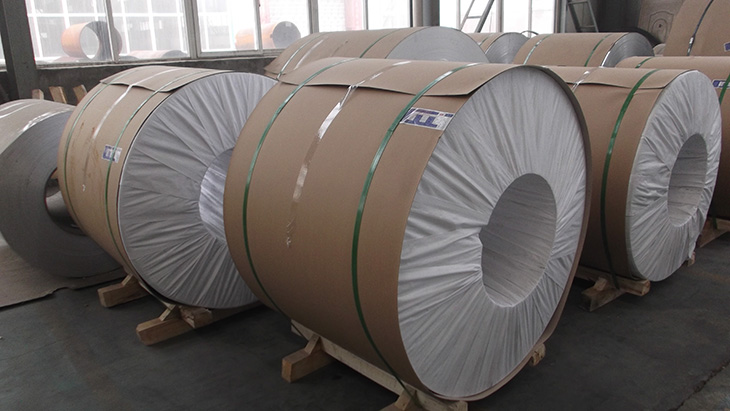

| Packing | Export standard, covering with brown paper and plastic film then packed with wooden case/pallet, eye to wall or eye to sky |

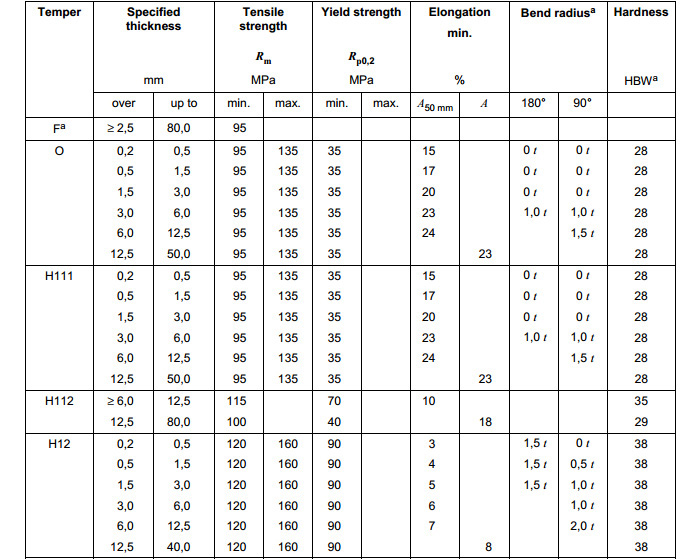

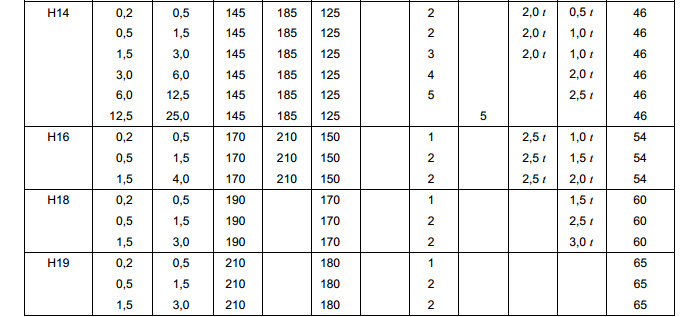

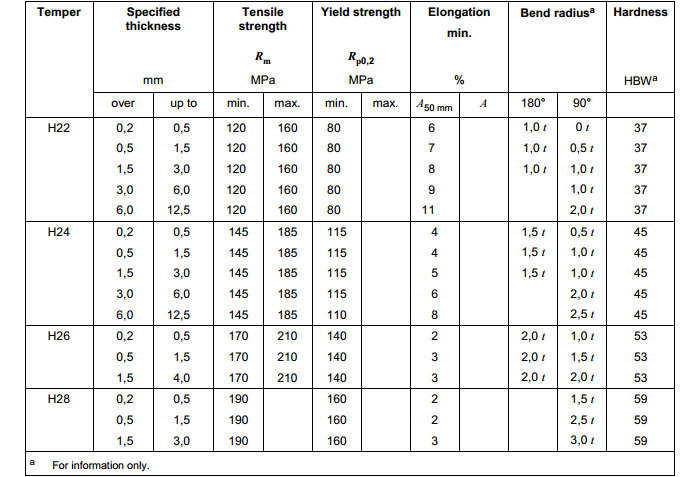

Mechanical Properties - 3003 Aluminium Coil Strip
Application : - 3003 Aluminium Coil Strip
1.Lighting, printing, packing, decorative, electronics surface, hot rolled thick plate, PS base plate,aluminium plastic base plate, aluminium curtain wall base plate, aluminium composite panel base.
plate, aluminium spacer, aluminium embossed sheet.
2.Interior:wall cladding,ceilings,bothrooms,kitchens and balconies,shutters,doors,curtain wall.
3.Exterior:wall cladding,facades,roofing,camopies,tunnels,column cover,renovations.
4.Advertisement:display platforms,signboards,fascia,shop fronts.
3003 Aluminium Coil Strip feature:
1.Good corrosion resistance
2.Good weldability
3.Good plasticity
