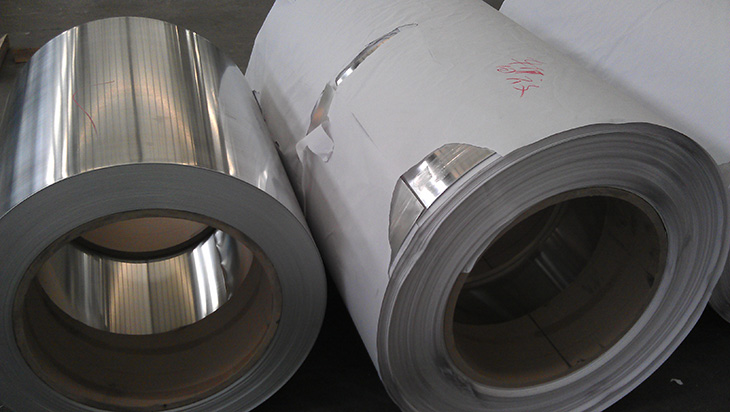

EN AW-4004 aluminium Coil Strip
4004 Aluminium Flat Strip / 4004 Anodised Aluminium Strip in China.
4004 Aluminium Flat Strip / 4004 Anodised Aluminium Strip in China.
Specifications - 4004 aluminium Coil Strip
1. Alloy and Temper: 4004-O
2. Thickness: 0.20-3.0mm
3. Width: 16-1600mm
4. Minimum order quantity: 30kgs
5. We could divide the coil into narrow size according to customer's request.
6. Package: Seaworthy package.
7. Feather: Steady and consistent quality, good product durability, high performance and cost ratio, professional team.
8. Delivery time: Within 30days after receiving the prepayment or original LC.
9. Usage: Aluminum brazing strip, composite materials etc.
10. Payment term: T/T, L/C at sight
11. Loading port: Zhengzhou,China
Chemical Properties - 4004 aluminium Coil Strip
Chemical Properties - 4004 aluminium Coil Strip
| Alloy Designation | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Ga | V | Remarks | Others |
Aluminium min |
||
| Numerical | Chemical Sympols | Each | Total | |||||||||||||
|
EN AW -4004 |
EN AW- AI Si10 Mg1.5 |
9.0- 10.5 |
0.8 | 0.25 | 0.10 | 1.0-2.0 | - | - | 0.20 | - | - | - | - | 0.05 | 0.15 | Remainder |
| Product size and tolerance - 4004 aluminium Coil Strip | |||
| No. | Item | Size | Tolerance |
| 1 | Width (mm) | 12-1300 | ±1 |
| 2 | Thickness (mm) | 0.05-1 | min ±0.005,max ±0.08 |
| Mechanical properties - 4004 aluminium Coil Strip | |||||||
| No. | Alloy number |
Thick. (mm) |
Temper |
Yield Strength Rp0.2(Mpa). Min |
Tensile Strength Rm (Mpa) |
Elongation (%) A50,Min |
Typical usage |
| 1 | 4004 | 0.07-3.0 | H14 | 120 | 140-200 | 0.5 | Sheet for brazing |
| Surface finish and other properties - 4004 aluminium Coil Strip | ||
| No. | Item | Description |
| 1 | Surface finish | a. The material shall be free from pinholes and tearing; b.The material shall be free waves and buckles; c. The slit edges must be free from burrs and shall be straight and parallel. |
| 2 | Depth of Curvature | In any length or width of 1 meter of the material,the depth of arc shall not exceed 2 mm. |
| Packing,Shipping and others - 4004 aluminium Coil Strip | ||
| No. | Item | Description |

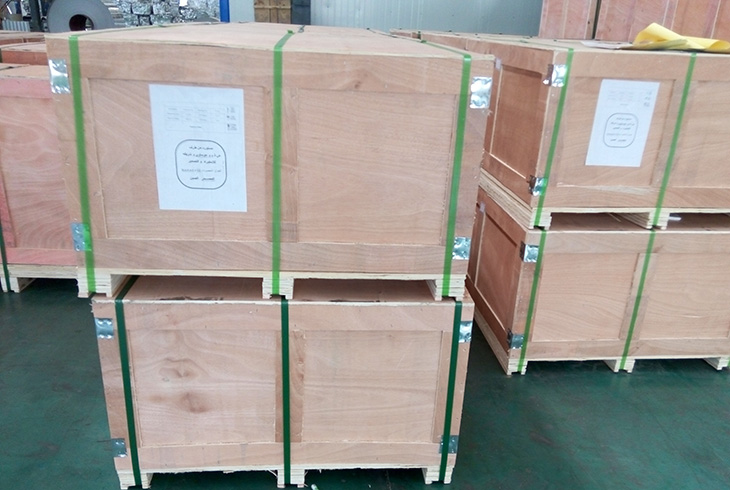

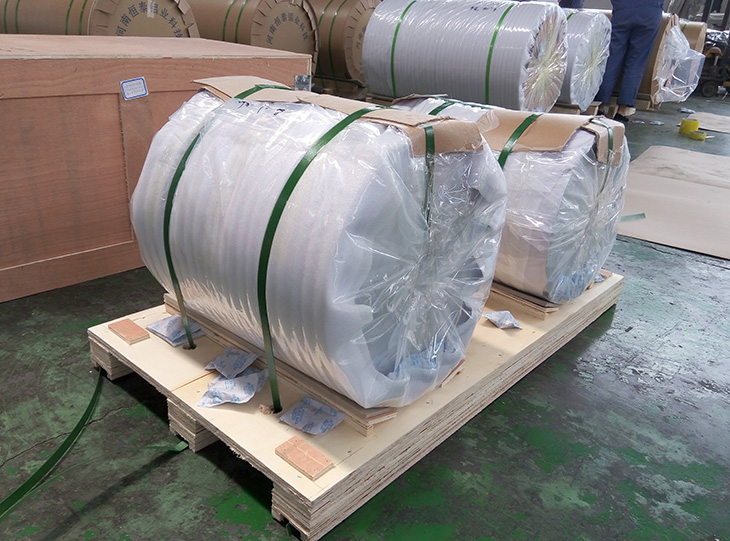

| 1 | Packing | To be packed in wooden boxes with card board and cutting with paper core in-between the coil max package weight 1500 kgs |
| 2 | Inner and outer diameter | Inner diameter 100/150/200/250/300/400/500mm can be optional based on product spec. and quantity,max outer diameter shall not exceed 1700mm |
| 3 | Rolled core material | Paper,aluminum,iron or none can be optional based on product specification or requirements |
| 4 | Coil orientation | Coil orientation in clockwise direction and eye to sky,anticloclwise can be optional |
| 5 | Packing way | Horizontal or vertical packing can be optional based on product specification and transfer safety |
| 6 | Marking | Each box to be legibly marked with the name of the manufacturer or supplier, the alloy designation of material,condition,dimensions and weight |
| 7 | Shipping tools | Ship goods by van to departune port then by sea to desitination port |
| 8 | Quantity variation | ±10% variation with order quantity shall be acceptable |
