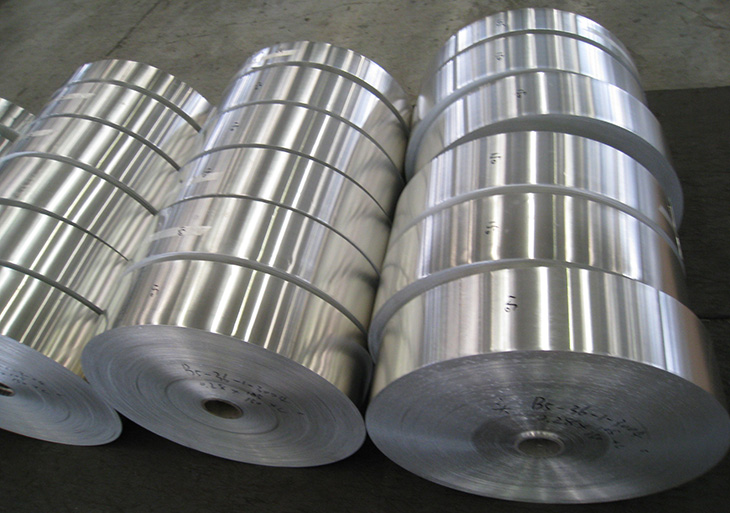

5454 Aluminium Coil Strip Introduction
5454 Flat Aluminium Strip / Flat Aluminum Strips in China
5454 Flat Aluminium Strip / Flat Aluminum Strips in China
Aluminum alloys contain strong corrosion resistance. These alloys are good low-temperature alloys. Aluminium / Aluminum alloys are sensitive to high temperatures ranging between 200 and 250°C (392 and 482°F). The strength of these alloys increases when exposed to subzero temperatures and the strength decreases when exposed to high temperatures.
Chemical Properties - 5454 Aluminium Coil Strip
Mechanical Properties - 5454 Aluminium Coil Strip
The following datasheet provides an overview of Aluminium / Aluminum 5454 alloy.
Physical Properties - 5454 Aluminium Coil Strip
The following table shows the physical properties of Aluminium / Aluminum 5454 alloy.
Thermal Properties - 5454 Aluminium Coil Strip
The thermal properties of Aluminium / Aluminum 5454 alloy are given in the following table.
Chemical Properties - 5454 Aluminium Coil Strip
| Alloy Designation | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Ga | V | Remarks | Others |
Aluminium min |
||
| Numerical | Chemical Sympols | Each | Total | |||||||||||||
|
EN AW -5454 |
EN AW- AI Mg3Mn |
0.25 | 0.4 | 0.1 | 0.5-1.0 | 2.4-3.0 | 0.05-0.2 | - | 0.25 | 0.2 | - | - | - | 0.05 | 0.15 | Remainder |

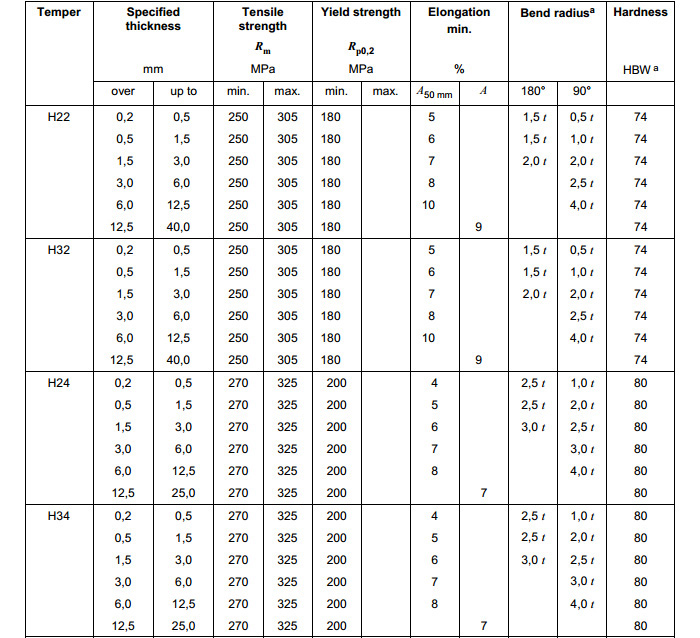

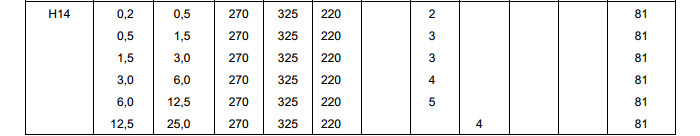

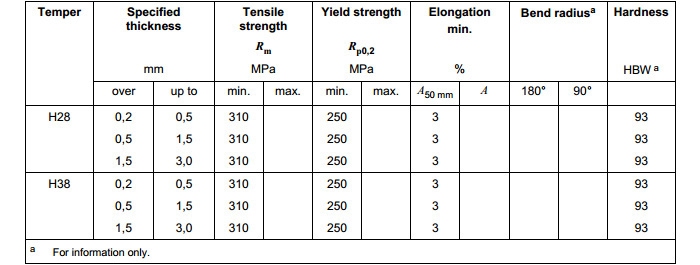

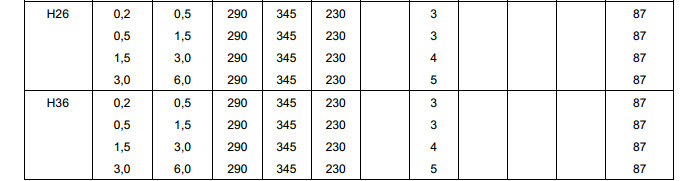

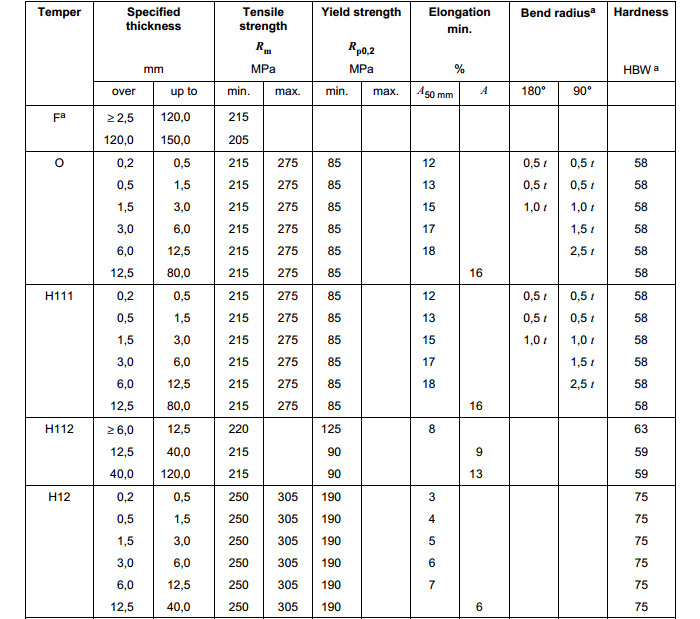

Mechanical Properties - 5454 Aluminium Coil Strip
The following datasheet provides an overview of Aluminium / Aluminum 5454 alloy.
Physical Properties - 5454 Aluminium Coil Strip
The following table shows the physical properties of Aluminium / Aluminum 5454 alloy.
| Properties | Metric | Imperial |
| Density | 2.6-2.8 g/cm3 | 0.0939-0.1011 lb/in3 |
| Melting point | 607°C | 1125°F |
Thermal Properties - 5454 Aluminium Coil Strip
The thermal properties of Aluminium / Aluminum 5454 alloy are given in the following table.
| Properties | Conditions | ||
| T (ºC) | Treatment | ||
| Thermal conductivity | 134 (W/mK) | 25 | All |
Fabrication and Heat Treatment
Annealing
Aluminium / Aluminum 5454 alloy is annealed at 343°C (650°F) only when the need to relieve the cold working stress arises. After being sufficiently heated the alloy is finally cooled in air.
Cold Working
Aluminium / Aluminum 5454 alloy is capable of being cold worked by using conventional methods. This alloy can be cold worked in any of the H-32, H-34, H-111 tempers or in the annealed condition.
Welding
Aluminium / Aluminum 5454 alloy is capable of being welded by all the commercial welding methods.
Forging
Aluminium / Aluminum 5454 alloy can be hot forged.
Forming
Aluminium / Aluminum 5454 alloy can be readily cold worked in the annealed or tempered conditions. This alloy contains good cold working and hot working characteristics.
Machinability
The machinability of Aluminium / Aluminum 5454 alloy is rated from fair to poor. Machining operations for this alloy is recommended when the alloy is in the H-34 temper condition. Oil lubricants can be used in the machining process.
Heat Treatment
Aluminium / Aluminum 5454 alloy cannot be heat treated.
Hot Working
Aluminium / Aluminum 5454 alloy can be hot worked in the temperature range of 371 to 204°C (700 to 400°F).
Hardening
Aluminium / Aluminum 5454 alloy can be hardened only by being cold worked.
Applications
Aluminium / Aluminum 5454 alloy is used in pressure vessels, marine service and welded structures.
