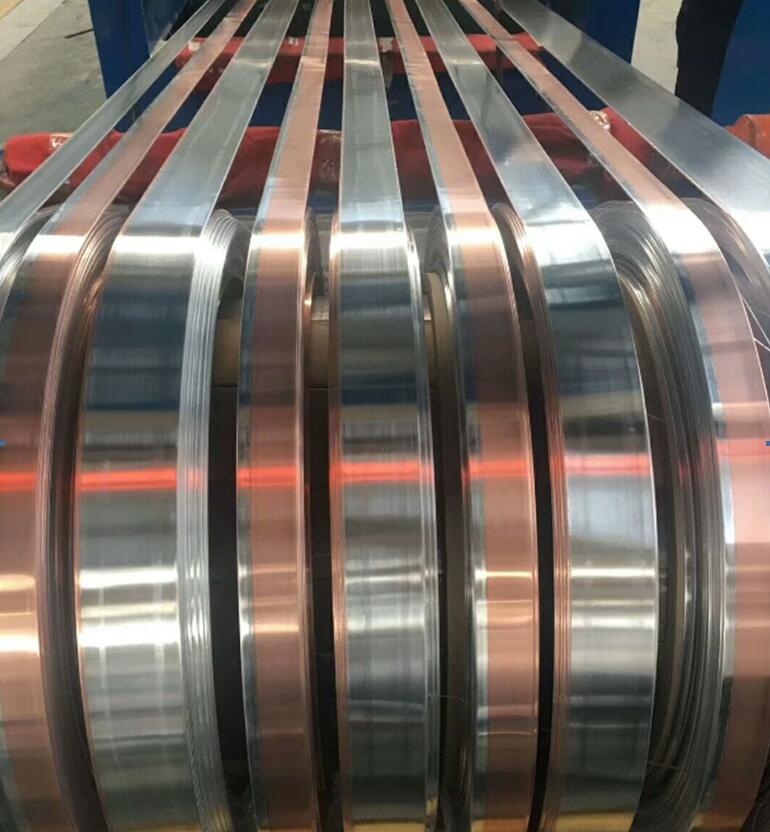

Bimetallic aluminum strip

Bimetallic aluminum strip is Usually know as Al Cu bimetallic strip, means copper strip clad on the aluminum strip, which is through rolling bonded or explosion bonded process. Chalco Aluminum have both technology, could make thickness from 0.4mm up to 200mm thickness Al Cu bimetallic strip.



Bimetallic aluminum strip, could be fabricated into many different shapes, such as circle, square strip, round strip, washers, square washers etc.

Bimetallic aluminum strip, could be used into many applications, such as CPU heat sink, terminal strips, switch gears, substation and switch yard bimetallic connectors, distribution and panel boards, cable lugs, cable clamp, busducts, busbar chambers, bimetallic clamp etc.

Bimetallic aluminum strip, its specs as below:

Aluminum: 1060, 1100, 3003, 5052
Copper: T2
Temper: O, H12, H14, H16, H18
Copper cladding rate: 10%, 15%, 20%, 30%
Thickness range: 0.20--200mm
Width: Maximum 1200mm
Length: coil or strip type.
