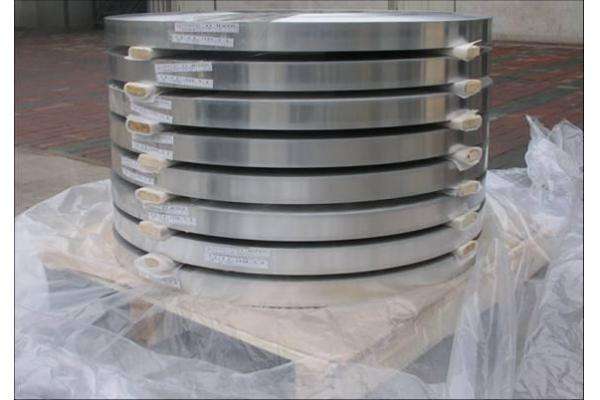

The copolymer coated aluminium tape for cable is made of soft aluminum foil and polyester film, which is coated with aluminum tape, and then cut and rolled when the copolymer coated aluminium tape for cable is completed.
Application mode: copolymer coated aluminium tape for cable is used for interference shielding of communication cables. It can be used with glue coating. After die cutting, aluminum foil Mylar tape can be used for assembly shielding and grounding.
Color of copolymer coated aluminium tape for cable: common colors are blue and silver, and can be made into red, green, gold, etc. according to the needs of customers, and can also be printed and twill, etc. application of copolymer coated aluminium tape for cable: mainly used in computer cable, home communication cable, high frequency signal cable, radio frequency cable, coaxial cable, etc
Product features:
1. High cost performance
2. Single or double film composite
| Copolymer coated aluminium tape for cable | |||||
| NO. | Item | Unit | Value | ||
| 1 | Appearance | -- | Smooth surface of aluminum strip | ||
| 2 | Specifications | Length | m | 1000~4100 | |
| Width | mm | 12~1000 | |||
| 3 | Thickness | Aluminum strip thickness | mm | 0.200±0.015 | |
| 0.150±0.010 | |||||
| 0.100±0.010 | |||||
| 0.080±0.010 | |||||
| Film thickness | A surface | mm | 0.058±0.013 | ||
| B surface | |||||
| Total thickness | mm | 0.310±0.015 | |||
| 0.260±0.015 | |||||
| 0.210±0.015 | |||||
| 0.190±0.015 | |||||
| 4 | tensile strength | mpa | 70~120 | ||
| 5 | Elongation rate | % | 15~30 | ||
| 6 | Peel strength between strip and film | N/cm | ≥6.13 | ||
| 7 | Heat sealing strength | N/cm | ≥17.5 | ||
