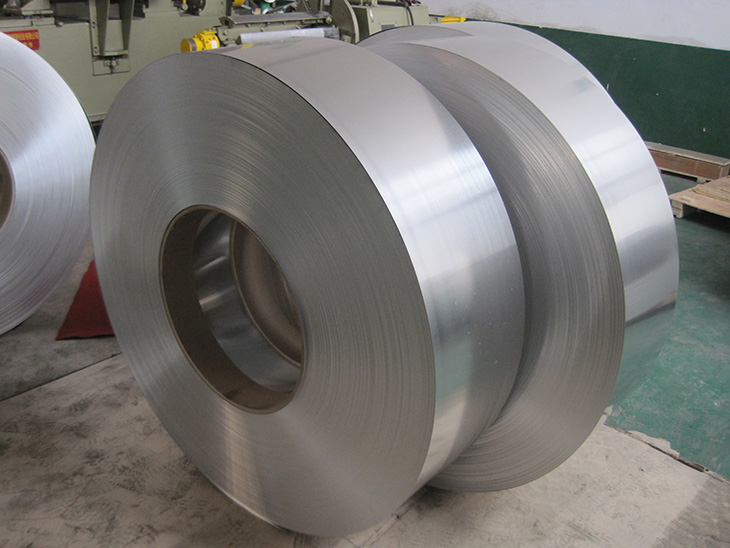

Flat Aluminium Strip / Flat Aluminum Strips / Aluminium Strips in China
We are specialized in aluminum strip manufacturing. The aluminum strip can be used in the production of cars, transformers, air compressor, engineering machinery, air separation equipment and other industries, such as radiators, condensers and evaporators manufacturing.
Technical Specifications
1. Thickness: 0.3-3mm
2. Width: 40-90mm
3. Material (alloy): 1100, 1050, 1070, 3003, 3004, 3105, 3005, 5005, 5052, 5754
Specifications of Flat Aluminum Strip:
1. Grade
1) 1000 Series: 1050 1060 1070 1100 1200 1235 etc.
2) 2000 Series: 2014 2024 etc.
3) 3000 Series: 3003 3004 3005 3104 3105 3A21 etc.
4) 4000 Series: 4047 4343 4045 etc.
5) 5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 etc.
6) 6000 Series: 6061 6063 6082 6A02 etc.
7) 7000 Series: 7005 7075 etc.
8) 8000 Series: 8006 8011 8079 etc.
2) Temper: all available, H1X, H2X, H3X, O, HXXX, TXXX
3) Thickness: 0.08mm and above, per customer’s request
4) Width: 6mm and above
5) Coil ID: 75mm, 150mm, 200mm, 300mm, 400mm, 508mm, and negotiable
Mechanical Propeties of Flat Aluminum Strip
| Internal Alloy Design | Former B.S. Specs | 0.2% Proof Stress MPa | Tensile Strength MPa | % Elongation | Shear Strength MPa | Fatigue Strength 50 mil. cycles MPa | Hardness | ||||
|
On √5.65 SO |
On 50 mm |
Brinell | Vickers | Rockwell B | |||||||
| 1050A |
0 H18 |
S1B |
35 133 |
75 146 |
25 - |
32 5 |
50 78 |
20 45 |
21 40 |
22 43 |
- - |
| 1080A |
0 H18 |
S1A |
30 125 |
75 138 |
- - |
32 5 |
60 - |
- - |
19 38 |
20 40 |
- - |
| 1200 |
0 H14 H18 |
S1C |
40 115 143 |
80 125 160 |
20 - - |
30 5 4 |
70 85 100 |
40 55 76 |
22 33 42 |
23 35 45 |
- - - |
| 1350 |
0 H12 H14 H16 |
P1E |
95 110 125 |
85 - - - |
- - - - |
- 60 70 75 |
55 - - - |
- - - - |
- - - - |
- - - - |
- - - - |
| 2014A |
T4 T6 |
HS15 |
255 420 |
410 470 |
10 8 |
14 7 |
262 293 |
170 170 |
115 145 |
122 153 |
67.3 81 |
| 2024 |
T5 T4 |
345 325 |
480 470 |
- - |
18 20 |
280 280 |
140 140 |
120 120 |
126 126 |
69.8 69.8 |
|
| 3003 |
0 H14 H16 H18 |
45 160 180 235 |
110 170 200 260 |
32 7.5 4.5 4 |
80 100 100 110 |
50 60 70 70 |
28 40 47 55 |
||||
| 3103 |
0 H14 H18 |
NS3 |
50 140 185 |
112 157 195 |
- - - |
24 5 4 |
76 92 108 |
54 71 85 |
29 44 53 |
30 47 56 |
- - - |
| 5005 |
0 H14 H18 |
NS41 |
- 115 170 |
120 165 195 |
- - - |
30 8 5 |
76 96 110 |
- - - |
28 40 50 |
29 42 52 |
- - - |
| 5052 |
0 H22 H24 H26 H28 |
90 180 220 240 260 |
200 240 260 270 300 |
22.5 18.5 9.5 8.5 8 |
125 140 145 160 165 |
110 120 125 130 140 |
47 60 67 74 80 |
50 63 71 78 84 |
|||
| 5083 |
0 H22 H24 |
NS8 |
140 250 285 |
292 337 375 |
20 - - |
16 8 6 |
155 - - |
124 - - |
72 95 110 |
76 100 116 |
- 52.5 63.6 |
| 5086 |
0 H22 H24 |
115 205 255 |
260 290 325 |
22 12 10 |
160 185 |
||||||
| 5558 | 0 | 169 | 270 | 14 | 16.5 | 143 | - | 75 | 82 | - | |
| 5154A |
0 H22 H24 |
NS5 |
105 185 240 |
245 270 300 |
20 - - |
16 7 6 |
146 170 - |
- 139 148 |
55 83 95 |
58 87 100 |
- 40 52.5 |
| 5251 |
0 H22 H24 |
NS4 |
87 150 190 |
180 220 250 |
20 - - |
18 6 5 |
125 139 |
92 124 - |
45 62 70 |
47 65 74 |
- - - |
| 5454 |
0 H22 H24 |
NS51 |
100 200 225 |
250 277 297 |
20 - - |
16 7 5 |
159 165 179 |
- - - |
62 73 81 |
65 77 85 |
- - - |
| 5558 | 0 | 270 | 169 | 14 | 16.5 | 143 | - | 75 | 82 | - | |
| 5754 | 0 | 120 | 230 | 20 | - | 155 | - | 60 | 62 | - | |
| 6061 |
T4 T6 |
HS20 |
125 265 |
215 305 |
18 11 |
16 9 |
165 205 |
95 95 |
60-70 90-100 |
64-74 95-105 |
48-56.6 - |
| 6082 |
T4 T6 |
HS30 |
130 270 |
225 310 |
16 9 |
15 8 |
178 218 |
106 124 |
60-70 90-100 |
64-74 95-105 |
48-56.6 - |
| 7020 |
T4 T6 |
HS17 |
200 290 |
310 350 |
12 10 |
10 8 |
- - |
- - |
95 120 |
100 126 |
69.8 - |
| 7022 | T6 | 475 | 530 | 9 | - | 310 | 159 | 145 | 153 | - | |
| 7075 | T6 | 505 | 570 | 10 | 11 | 330 | 160 | 150 | 157 | 82.4 | |

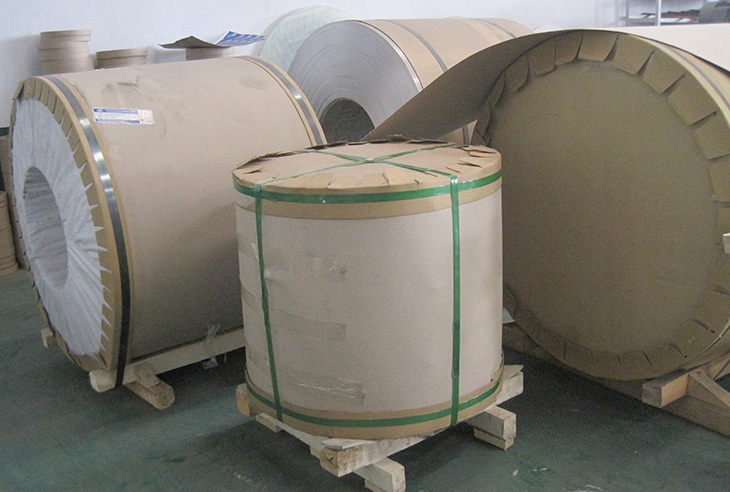

Signi Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)Signi Standard
2)Customization
Applications for Flat Aluminum Strip:
1) Refrigerator
2) Commercial freezer
3) Corrugated roofing making
4) Cable wrap
5) Capacitor
6) PP cap
7) Anti-theft strips
8) Aluminum/plastic composite pipes
9) PS substrates
10)Garments accessories(eyelet, button etc)
